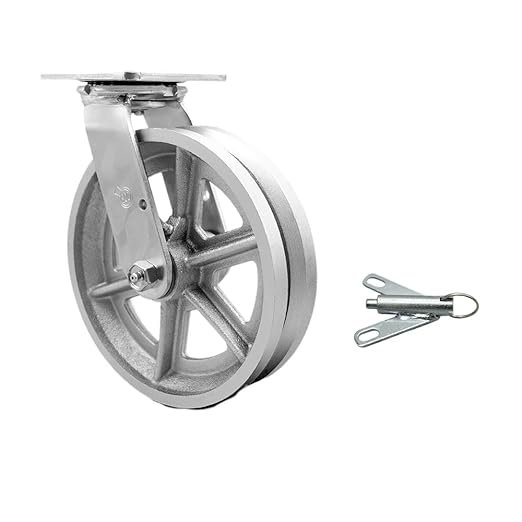

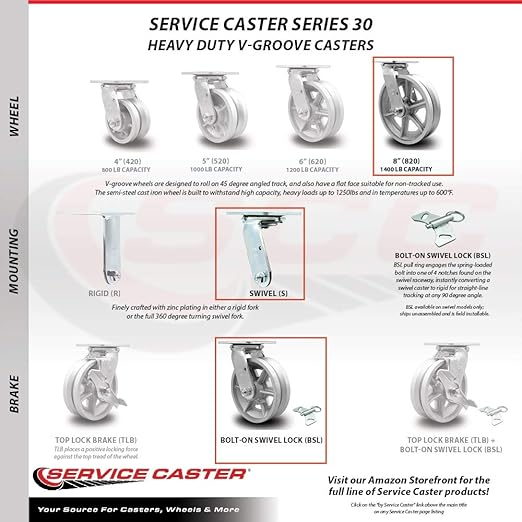

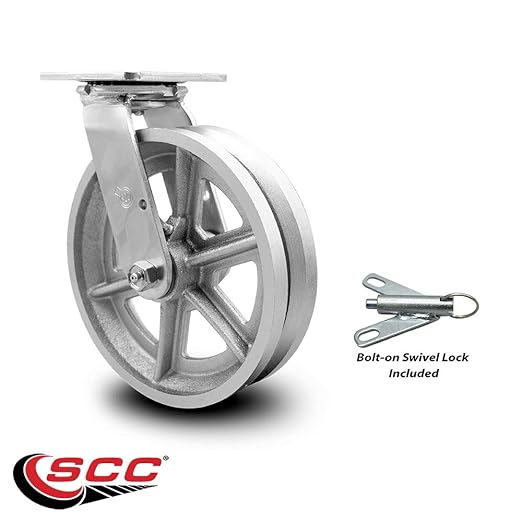

• These Service Caster Series #30 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
• Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1,100 lbs Capacity/Caster, 6": 1,200 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster

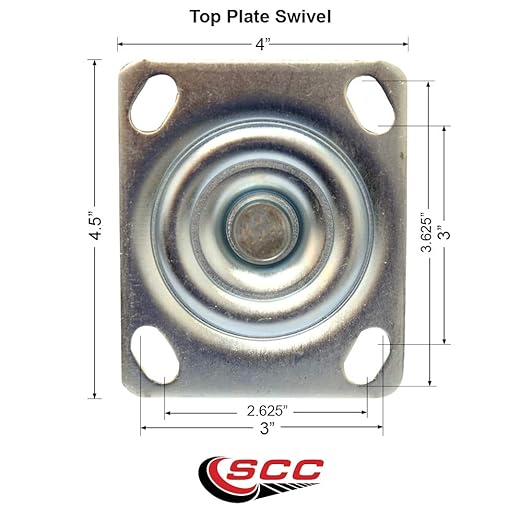

• Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
• Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
• Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.

Overview

• Size : 8" Wheel
• Brand : Service Caster
• Rim Size : 8 Inches
• UPC : 670533945873
• Color : Swivel - Bolt On Swivel Lock - Silver
• Manufacturer : Service Caster
• Exterior Finish Bright Zinc Plated Finish : Material Semi Steel Cast Iron V-Groove
• : Exterior Finish Bright Zinc Plated Finish
• : Material Semi Steel Cast Iron V-Groove
